HFU620UY060J Equivalent
- Product No.:FCTFUAPP206HE
Equivalent, replacement, alternative, analog, retrofit, analogue: Pall Ultipleat high flow filter cartridge HFU620UY060J
General Information

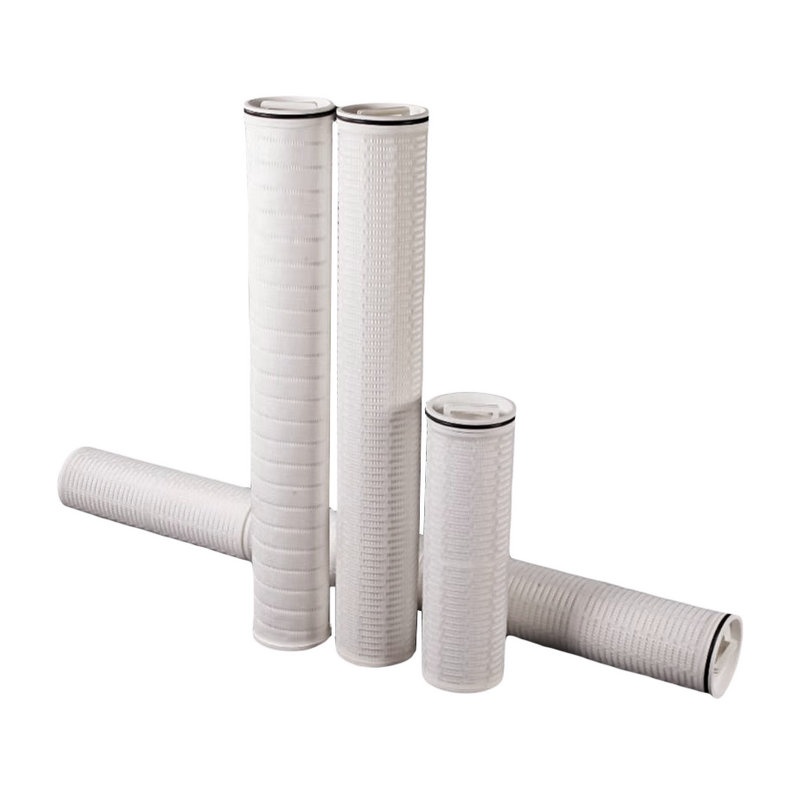

FCTFUAPP206HE is manufactured as the direct equivalent, replacement, alternative, analog, retrofit and analogue to replace Pall Ultipleat high flow filter cartridge HFU620UY060J.FCTFUAPP206HE polypropylene pleated high flow filter cartridge is specifically developed to provide higher flow solution for particulate removal in clarification and prefiltration of process, representing a highly-optimized pleated filter technology.
Features
- Absolute micron retention ratings from 0.45 to 100 microns
- Ergonomically designed handle.
- High surface area, high flow rates with low pressure drops
- Various configuration in lengths and adaptors
Benefits
- Reduce capital expenditure by fewer cartridges and housings used.
- Reduce operational expenditure by reduced cartridge change-out frequency, downtime, product waste, labour and disposal costs with longer service life.
- Ideal choice for a wide variety of process applications.
- Highly durable polypropylene construction, broad chemical compatibility, suitable for rigorous process conditions.
- Faster, easier filter change-out.
- Direct and economical filter element replacement.
Applications
- Food & Beverage
- Process water
- Cooling water for power generation
- Seawater RO pre-filtration
- Pulp & paper and textiles
- Petrochemical and chemicals
- Industrial condensate water
- Municipal water, etc.
Specifications
Effective Filtration Area (EFA): 3.4 m2 (36.6 ft2) per 20" (508 mm)
Materials of Construction
Support/Drainage material: polypropylene
Hardware: polypropylene
End cap: Glass fiber reinforced polypropylene
Sealing: Thermal bond
Regulatory compliance
Operating Conditions
Removal rating (μm) |
Element pressure drop (mbar/m3/h) |
Element pressure drop (psi/gpm) |
||||
0.45 |
7.86 |
3.8 |
2.56 |
0.0258 |
0.0125 |
0.0084 |
0.8 |
6.39 |
3.09 |
2.08 |
0.021 |
0.0102 |
0.0068 |
1 |
6.08 |
2.94 |
1.98 |
0.02 |
0.0097 |
0.0065 |
2 |
3.31 |
1.64 |
1.1 |
0.0109 |
0.0054 |
0.0036 |
3 |
2.61 |
1.29 |
0.87 |
0.0088 |
0.0043 |
0.0029 |
4.5 |
1.48 |
0.73 |
0.49 |
0.0049 |
0.0024 |
0.0016 |
10 |
1.04 |
0.52 |
0.35 |
0.0034 |
0.0017 |
0.0011 |
20 |
0.74 |
0.36 |
0.24 |
0.0024 |
0.0012 |
0.0008 |
30 |
0.64 |
0.31 |
0.21 |
0.0022 |
0.0011 |
0.0007 |
40 |
0.55 |
0.27 |
0.18 |
0.0018 |
0.0009 |
0.0006 |
50 |
0.46 |
0.22 |
0.15 |
0.0015 |
0.0007 |
0.0005 |
70 |
0.12 |
0.06 |
0.04 |
0.0004 |
0.0002 |
0.00013 |
90 |
0.114 |
0.057 |
0.038 |
0.00038 |
0.00019 |
0.00012 |
100 |
0.112 |
0.056 |
0.037 |
0.00037 |
0.00019 |
0.00012 |
Unit conversion: 1 mbar = 0.0145 psi
Ordering Guide
Cartridge |
Material |
Nominal Length |
Removal Rating |
Adaptor* |
O-ring Material |
|||||||
FCTFUA |
PP |
=Polypropylene |
20 |
=20" |
04 |
=0.45 μm |
20 |
=20 μm |
F |
=226 O-rings adaptor, handle end |
E |
=EPDM |
GF |
= Glass fiber |
40 |
=40" |
08 |
=0.8 μm |
30 |
=30 μm |
N |
=Nitrile |
|||
|
|
60 |
=60" |
1 |
=1 μm |
40 |
=40 μm |
S |
=Silicone |
|||
|
|
2 |
=2 μm |
50 |
=50 μm |
H |
=435 O-ring with handle, flat end |
V |
=Fluorocarbon elastomer |
|||
3 |
=3 μm |
70 |
=70 μm |
|
||||||||
4.5 |
=4.5 μm |
90 |
=90 μm |
|
||||||||
10 |
=10 μm |
100 |
=100 μm |
|
|
|
Full Equivalent List
HFU620UY060H13
HFU620UY060H4
HFU620UY060H
