Products >> High Flow Filter Cartridge >> Absolute High Flow Filter Cartridge

LPHF-60-5-V Equivalent

Product No.：FCTFUAPP605HV
Online Inquiry

Equivalent, replacement, alternative, analog, retrofit, analogue: Eaton LOFPLEAT HF high flow filter cartridge LPHF-60-5-V (LPHF605V)

General Information

FCTFUAPP605HV is manufactured as the direct equivalent, replacement, alternative, analog, retrofit and analogue to replace Eaton LOFPLEAT HF high flow filter cartridge LPHF-60-5-V (LPHF605V).

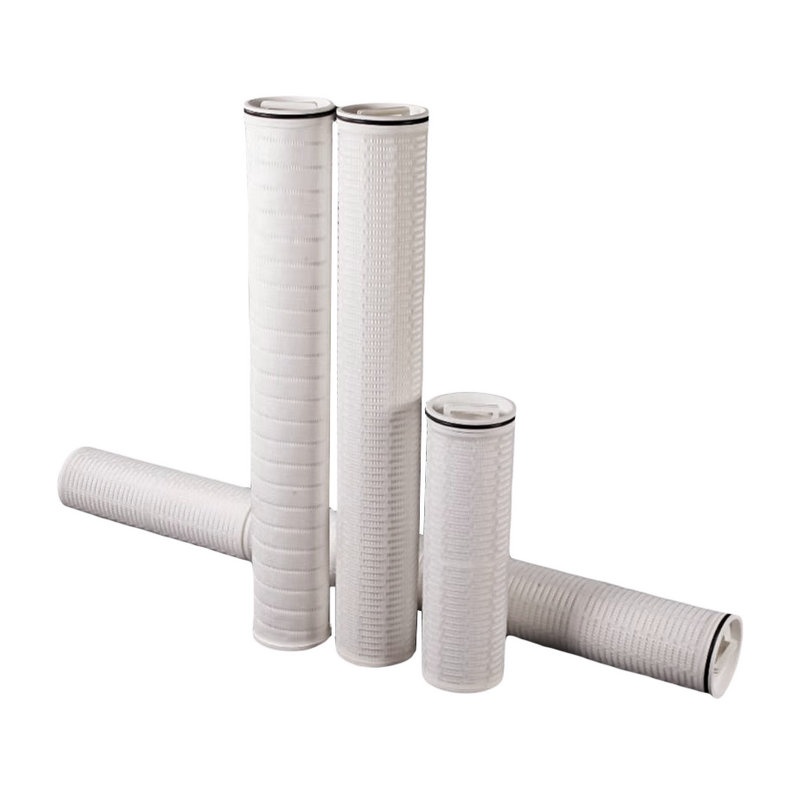

FCTFUAPP605HV polypropylene pleated high flow filter cartridge is specifically developed to provide higher flow solution for particulate removal in clarification and prefiltration of process, representing a highly-optimized pleated filter technology.

This is a large diameter (152 mm/6 inch), coreless, single open ended (SOE), pleated cartridge with an inside to outside flow direction, allows for maximum dirt holding capacity, extending service life for change-out. The high flow by large filtration area reduces the quantity of filter cartridge and the size of housings required.

The polypropylene construction offers broad chemical compatibility. The unique filtration media of polypropylene and glass fiber results in an excellent filtration efficiency, which largely reduces the burden of downstream process for particle removal applications, such as cooling water, RO systems for seawater desalination, oil fields and other industrial fields etc.

Features

Absolute micron retention ratings from 0.45 to 100 microns
Ergonomically designed handle.
High surface area, high flow rates with low pressure drops
Various configuration in lengths and adaptors

Benefits

Reduce capital expenditure by fewer cartridges and housings used.
Reduce operational expenditure by reduced cartridge change-out frequency, downtime, product waste, labour and disposal costs with longer service life.
Ideal choice for a wide variety of process applications.
Highly durable polypropylene construction, broad chemical compatibility, suitable for rigorous process conditions.
Faster, easier filter change-out.
Direct and economical filter element replacement.

Applications

Food & Beverage
Process water
Cooling water for power generation
Seawater RO pre-filtration
Pulp & paper and textiles
Petrochemical and chemicals
Industrial condensate water
Municipal water, etc.

Specifications

Effective Filtration Area (EFA): 3.4 m² (36.6 ft²) per 20" (508 mm)

Materials of Construction

Filter media: microfiber polypropylene, glass fiber
Support/Drainage material: polypropylene
Hardware: polypropylene
End cap: Glass fiber reinforced polypropylene
Sealing: Thermal bond

O-ring: EPDM (ethylene propylene), NBR (nitrile), Silicone, Viton (fluorocarbon elastomer)

Dimensions (nominal)

Outer diameter: 152 mm (6”)

Lengths: 508 mm (20"), 1,016 mm (40"), 1,524 mm (60”)

Removal Rating: 0.45 μm*, 0.8 μm, 1 μm, 2 μm, 3 μm, 4.5 μm*, 10 μm, 20 μm, 30 μm, 40 μm, 50 μm, 70 μm, 90 μm, 100 μm

Purity: free of surfactants, resins, binders and adhesives.

*0.45 μm equals 0.5 μm and 4.5 μm equals to 5 μm against other brands.

Regulatory compliance

These filter cartridges are designed, developed and manufactured in accordance with a Quality Management System approved by an accredited registering body to an ISO 9001 Quality Systems Standard and are shipped with a Certificate of Quality.

All components of these filter cartridges are Food and Drug Administration (FDA) listed for food contact use in the Code of Federal Regulations (CFR) Title 21 (177.1520 and 177.2600) and conform to the relevant requirements of Regulation (EC) 1935/2004 for their intended food contact applications and USP for the Biological Test for Plastics, Class VI.

For easy traceability and identification, every filter cartridge has a lot number.

Operating Conditions

Recommended change-out differential pressure: 2.4 bar (35 psi) @ 20°C (68°F)

Maximum differential pressure:

5.2 bar (75 psi ) @ 20°C (68°F)

3.4 bar (50 psi) @ 82°C (180°F) for pleated polypropylene

3.4 bar (50 psi) @ 121°C (250°F) for pleated glass fiber

Maximum reverse differential pressure: 2.8 bar (40 psi) @ 20°C (68°F)

Maximum operating temperature: 82°C (180°F) for pleated polypropylene, 121°C (250°F) for pleated glass fiber

Recommended maximum recommended water flow rate

20" cartridge up to 662 lpm (175 gpm), 40" cartridge up to 1,325 lpm (350 gpm), 60" cartridge up to 1,892 lpm (500 gpm).

Pressure drop on flow rate:

Removal rating (μm)	Element pressure drop (mbar/m³/h)			Element pressure drop (psi/gpm)
